questions and HOWTO regarding https://6.docs.plone.org/install/containers/examples/nginx-volto-plone-zeo.html on QNAP

Plone Support
1

Hello Plone volunteers:

I've been using *nix since the early 90s, but this is my first time using docker and Plone.

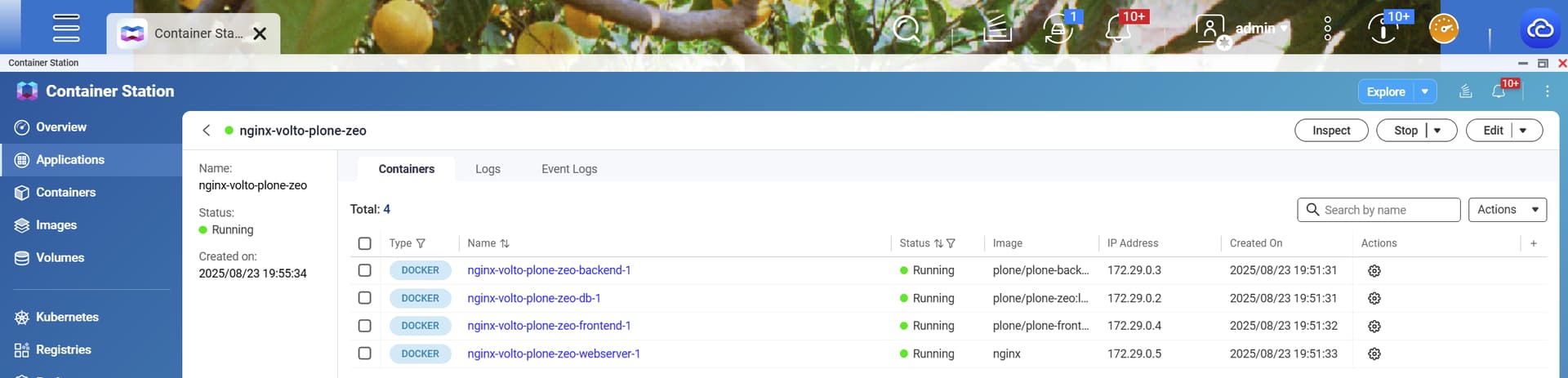

I've successfully stood up nginx-volto-plone-zeo on QNAP based on nginx, Frontend, Backend, ZEO container example — Plone Documentation v6

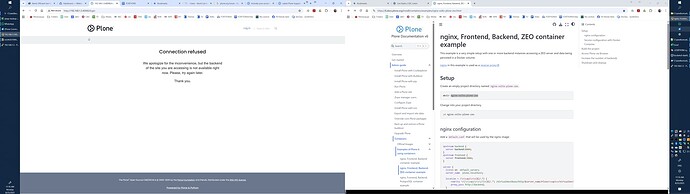

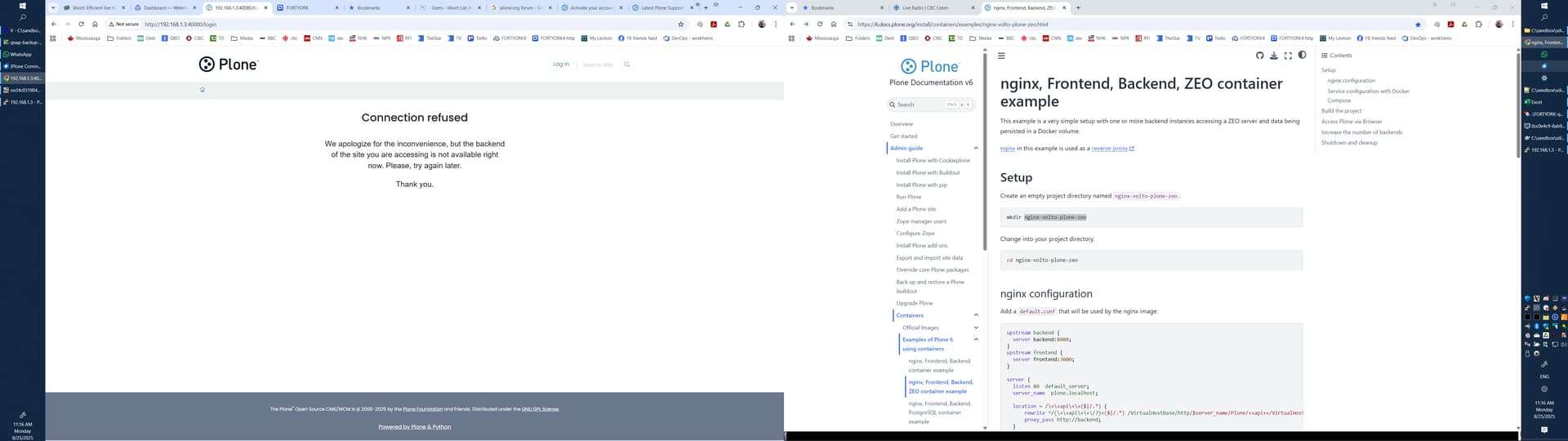

But I'm getting:

image1920×540 61 KB

image1920×463 76.1 KB

I had to change the ports for backend and webserver:

upstream backend {
  server backend:48080;
}
upstream frontend {
  server frontend:3000;
}

server {
  listen 40080  default_server;
  server_name  plone.localhost;

  location ~ /\+\+api\+\+($|/.*) {
      rewrite ^/(\+\+api\+\+\/?)+($|/.*) /VirtualHostBase/http/$server_name/Plone/++api++/VirtualHostRoot/$2 break;
      proxy_pass http://backend;
  }

  location ~ / {
      location ~* \.(js|jsx|css|less|swf|eot|ttf|otf|woff|woff2)$ {
          add_header Cache-Control "public";
          expires +1y;
          proxy_pass http://frontend;
      }
      location ~* static.*\.(ico|jpg|jpeg|png|gif|svg)$ {
          add_header Cache-Control "public";
          expires +1y;
          proxy_pass http://frontend;
      }

      proxy_set_header        Host $host;
      proxy_set_header        X-Real-IP $remote_addr;
      proxy_set_header        X-Forwarded-For $proxy_add_x_forwarded_for;
      proxy_set_header        X-Forwarded-Proto $scheme;
      proxy_redirect http:// https://;
      proxy_pass http://frontend;
  }
}

services:

  webserver:
    image: nginx
    volumes:
      - ./default.conf
    depends_on:
      - backend
      - frontend
    ports:
    - "40080:40080"

  frontend:
    image: plone/plone-frontend:latest
    environment:
      RAZZLE_INTERNAL_API_PATH: http://backend:48080/Plone
    ports:
    - "3000:3000"
    depends_on:
      - backend

  backend:
    image: plone/plone-backend:6.1
    environment:
      SITE: Plone
      ZEO_ADDRESS: db:8100
      ZEO_SHARED_BLOB_DIR: on   # otherwise the backend will create its own blob storage
    volumes:
      - data:/data              # the backend and database need access to the same volume
    ports:
    - "48080:48080"
    depends_on:
      - db

  db:
    image: plone/plone-zeo:latest
    restart: always
    volumes:
      - data:/data
    ports:
    - "8100:8100"

volumes:
  data: {}

What should be my next step for diagnosis?

2

I do not know QNAP, but if it is possible to get a shell there, you will get more information from manually running “docker compose up” (without the -d) there.

My guesses for candidates:

  • assuming you had good reasons to change the ports, there may be a block against certain port ranges. Try changing the db ports to 48100 (and the corresponding entry for ZEO_ADDRESS). (It seems the 3000 port is not blocked as you get something at least)
  • the second candidate is always file permissions. You could explicitly set where the data is stored by specifying the volume, something like :
    volumes:
    data:
    driver: local
    driver_opts:
    type: none
    o: bind
    device: /opt/plone_data

but then the user that runs the docker has to have write rights in /opt/plone_data or where you prefer to put it. You can explicitly instruct the “db” container to run with a specific userID, I always find it’s safer to use numeric ID’s there, something like user: 1000:1000 (but, as said, use the numeric id of the user that runs the docker compose on the host)

3

I'm by no means an expert here, but I have a similar setup running Plone with Volto behind nginx using containers and seem to recall running into a similar issue when using the config example verbatim.

Here’s a snippet of my default.conf file for nginx:

location ~ /\+\+api\+\+($|/.*) {
      rewrite ^/\+\+api\+\+($|/.*) /VirtualHostBase/https/$server_name/Plone/++api++/VirtualHostRoot/$1 break;
  # ** set the protocol correctly in the rewrite ---^^^^^
  # ** must be https if site is using https !!
      proxy_pass http://backend;
  }
1 Like
4

@pjbondi I could spot a few things in your docker compose mapping ports, but changing the nginx port was the real challenge. Thus here are the updated files:

default.conf

upstream backend {
  server backend:8080;
}
upstream frontend {
  server frontend:3000;
}

server {
  listen 40080  default_server;
  server_name localhost;

  location ~ /\+\+api\+\+($|/.*) {
      rewrite ^/(\+\+api\+\+\/?)+($|/.*) /VirtualHostBase/http/$server_name:40080/Plone/++api++/VirtualHostRoot/$2 break;
      proxy_pass http://backend;
  }

  location ~ / {
      location ~* \.(js|jsx|css|less|swf|eot|ttf|otf|woff|woff2)$ {
          add_header Cache-Control "public";
          expires +1y;
          proxy_pass http://frontend;
      }
      location ~* static.*\.(ico|jpg|jpeg|png|gif|svg)$ {
          add_header Cache-Control "public";
          expires +1y;
          proxy_pass http://frontend;
      }

      proxy_set_header        Host $host;
      proxy_set_header        X-Real-IP $remote_addr;
      proxy_set_header        X-Forwarded-For $proxy_add_x_forwarded_for;
      proxy_set_header        X-Forwarded-Proto $scheme;
      proxy_redirect http:// https://;
      proxy_pass http://frontend;
  }
}

docker-compose.yml

services:

  webserver:
    image: nginx
    volumes:
      - ./default.conf:/etc/nginx/conf.d/default.conf
    depends_on:
      - backend
      - frontend
    ports:
    - "40080:40080"

  frontend:
    image: plone/plone-frontend:latest
    environment:
      RAZZLE_API_PATH: http://localhost:40080/
      RAZZLE_INTERNAL_API_PATH: http://backend:8080/Plone
    ports:
    - "3000:3000"
    depends_on:
      - backend

  backend:
    image: plone/plone-backend:6.1
    environment:
      SITE: Plone
      ZEO_ADDRESS: db:8100
      ZEO_SHARED_BLOB_DIR: on   # otherwise the backend will create its own blob storage
    volumes:
      - data:/data              # the backend and database need access to the same volume
    ports:
    - "48080:8080"
    depends_on:
      - db

  db:
    image: plone/plone-zeo:latest
    restart: always
    volumes:
      - data:/data
    ports:
    - "8100:8100"

volumes:
  data: {}
5

Now, if you are in the cloud/virtual machine (not on localhost), then things get even more complicated :slight_smile:
Also, for security reasons, you shouldn’t expose services ports, other than Nginx.

Thus, here is an example with IP (replace 192.168.1.129 with your IP)

default.conf

upstream backend {
  server backend:8080;
}
upstream frontend {
  server frontend:3000;
}

server {
  listen 40080  default_server;
  server_name 192.168.1.129;

  location ~ /\+\+api\+\+($|/.*) {
      rewrite ^/(\+\+api\+\+\/?)+($|/.*) /VirtualHostBase/http/$server_name:40080/Plone/++api++/VirtualHostRoot/$2 break;
      proxy_pass http://backend;
  }

  location ~ / {
      location ~* \.(js|jsx|css|less|swf|eot|ttf|otf|woff|woff2)$ {
          add_header Cache-Control "public";
          expires +1y;
          proxy_pass http://frontend;
      }
      location ~* static.*\.(ico|jpg|jpeg|png|gif|svg)$ {
          add_header Cache-Control "public";
          expires +1y;
          proxy_pass http://frontend;
      }

      proxy_set_header        Host $host;
      proxy_set_header        X-Real-IP $remote_addr;
      proxy_set_header        X-Forwarded-For $proxy_add_x_forwarded_for;
      proxy_set_header        X-Forwarded-Proto $scheme;
      proxy_redirect http:// https://;
      proxy_pass http://frontend;
  }
}

docker-compose.yml

services:

  webserver:
    image: nginx
    volumes:
      - ./default.conf:/etc/nginx/conf.d/default.conf
    depends_on:
      - backend
      - frontend
    ports:
    - "40080:40080"

  frontend:
    image: plone/plone-frontend:latest
    environment:
      RAZZLE_API_PATH: http://192.168.1.129:40080
      RAZZLE_INTERNAL_API_PATH: http://backend:8080/Plone
    depends_on:
      - backend

  backend:
    image: plone/plone-backend:6.1
    environment:
      CORS_ALLOW_ORIGIN: "http://192.168.1.129:40080"
      SITE: Plone
      ZEO_ADDRESS: db:8100
      ZEO_SHARED_BLOB_DIR: on   # otherwise the backend will create its own blob storage
    volumes:
      - data:/data              # the backend and database need access to the same volume
    depends_on:
      - db

  db:
    image: plone/plone-zeo:latest
    restart: always
    volumes:
      - data:/data

volumes:
  data: {}
6

Hi @pjbondi what a cool idea! Thanks for sharing here.

7

Hello @avoinea and thank you for your ideas so far.

I do not know what diagnostics to provide. This is what I got:

[~] # uname -a
Linux FORTYORK 5.10.60-qnap #1 SMP Tue Jul 15 04:16:24 CST 2025 x86_64 GNU/Linux
[~] # docker ps
CONTAINER ID   IMAGE                         COMMAND                  CREATED       STATUS                    PORTS                                NAMES
5de20858397e   nginx                         "/docker-entrypoint.â¦"   2 weeks ago   Up 7 minutes              80/tcp, 0.0.0.0:40080->40080/tcp     nginx-volto-plone-zeo-webserver-1
161e39810bf3   plone/plone-frontend:latest   "pnpm start:prod"        2 weeks ago   Up 11 minutes (healthy)   0.0.0.0:3000->3000/tcp               nginx-volto-plone-zeo-frontend-1
d80d1644a8a0   plone/plone-backend:6.1       "/app/docker-entrypoâ¦"   2 weeks ago   Up 12 minutes (healthy)   8080/tcp, 0.0.0.0:48080->48080/tcp   nginx-volto-plone-zeo-backend-1
ae2540980075   plone/plone-zeo:latest        "/app/start-zeo.sh"      2 weeks ago   Up 13 minutes             0.0.0.0:8100->8100/tcp               nginx-volto-plone-zeo-db-1
33e5d8141025   iib0011/omni-tools:latest     "/docker-entrypoint.â¦"   4 weeks ago   Up 2 weeks                0.0.0.0:32768->80/tcp                omni-tools-1
[~] # docker logs ae2540980075 --since "2025-09-07"
=======================================================================================
Starting ZEO on port 8100
=======================================================================================
[~] # docker logs d80d1644a8a0 --tail 25
127.0.0.1 - - [07/Sep/2025:22:48:13 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:48:23 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:48:33 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:48:43 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:48:53 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:49:03 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:49:14 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:49:24 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:49:34 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:49:44 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:49:54 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:50:04 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:50:14 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:50:25 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:50:35 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:50:45 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:50:55 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:51:05 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:51:15 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:51:25 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:51:36 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:51:46 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:51:56 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:52:06 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
127.0.0.1 - - [07/Sep/2025:22:52:16 +0000] "GET /ok HTTP/1.1" 200 2 "-" "Wget"
[~] # docker logs 161e39810bf3 --since "2025-09-07"
âELIFECYCLEâ Command failed.
/app/core/packages/volto:
âERR_PNPM_RECURSIVE_RUN_FIRST_FAILâ @plone/volto@18.22.0 start:prod: `NODE_ENV=production node build/server.js`
Command failed with signal "SIGTERM"

> project-dev@1.0.0-alpha.0 start:prod /app
> pnpm --filter @plone/volto start:prod


> @plone/volto@18.22.0 start:prod /app/core/packages/volto
> NODE_ENV=production node build/server.js

API server (API_PATH) is set to:
Proxying API requests from http://localhost:3000/++api++ to http://backend:48080/Plone
ð­ Volto started at 0.0.0.0:3000 ð
[~] #
[~] # curl -iI http://127.0.0.1:8100
curl: (1) Received HTTP/0.9 when not allowed
[~] # curl -iI http://127.0.0.1:8080
HTTP/1.1 200 OK
Date: Sun, 07 Sep 2025 23:06:04 GMT
Server:
X-Frame-Options: SAMEORIGIN
Content-Security-Policy: script-src 'self' 'unsafe-inline' 'unsafe-eval' ; object-src 'self' ; worker-src 'self' blob:
Content-type: text/html; charset=UTF-8
Last-modified: Mon, 14 Jul 2025 21:48:35 GMT
Accept-Ranges: bytes
Content-length: 580
X-XSS-Protection: 1; mode=block
X-Content-Type-Options: nosniff

[~] # curl -iI http://192.168.1.3:3000
HTTP/1.1 200 OK
Content-Type: text/html; charset=utf-8
Content-Length: 0
ETag: W/"0-2jmj7l5rSw0yVb/vlWAYkK/YBwk"
Date: Sun, 07 Sep 2025 23:06:14 GMT
Connection: keep-alive
Keep-Alive: timeout=5

[~] # curl -iI http://127.0.0.1:80
HTTP/1.1 403 Forbidden
Date: Sun, 07 Sep 2025 23:06:27 GMT
Server: Apache
X-Frame-Options: SAMEORIGIN
Content-Type: text/html; charset=iso-8859-1

I’m not able to post screen capture. Here’s copy, paste of http ://192.168.1.3:40080/login. Same as before.

Connection refused

We apologize for the inconvenience, but the backend of the site you are accessing is not available right now. Please, try again later.

Thank you.
